PTFE Tri-clamp gaskets
TRI-CLAMP gaskets are used as a sealing element between two inox steel “clamp” fittings (called ferrules), closed by a collar without using bolts; in addition, tri-clamps are able to self-centre their position thanks to the semi-cylindrical protuberance on both the surfaces of the gasket which fit perfectly into the groove of the two “ferrules”.
Application Sectors

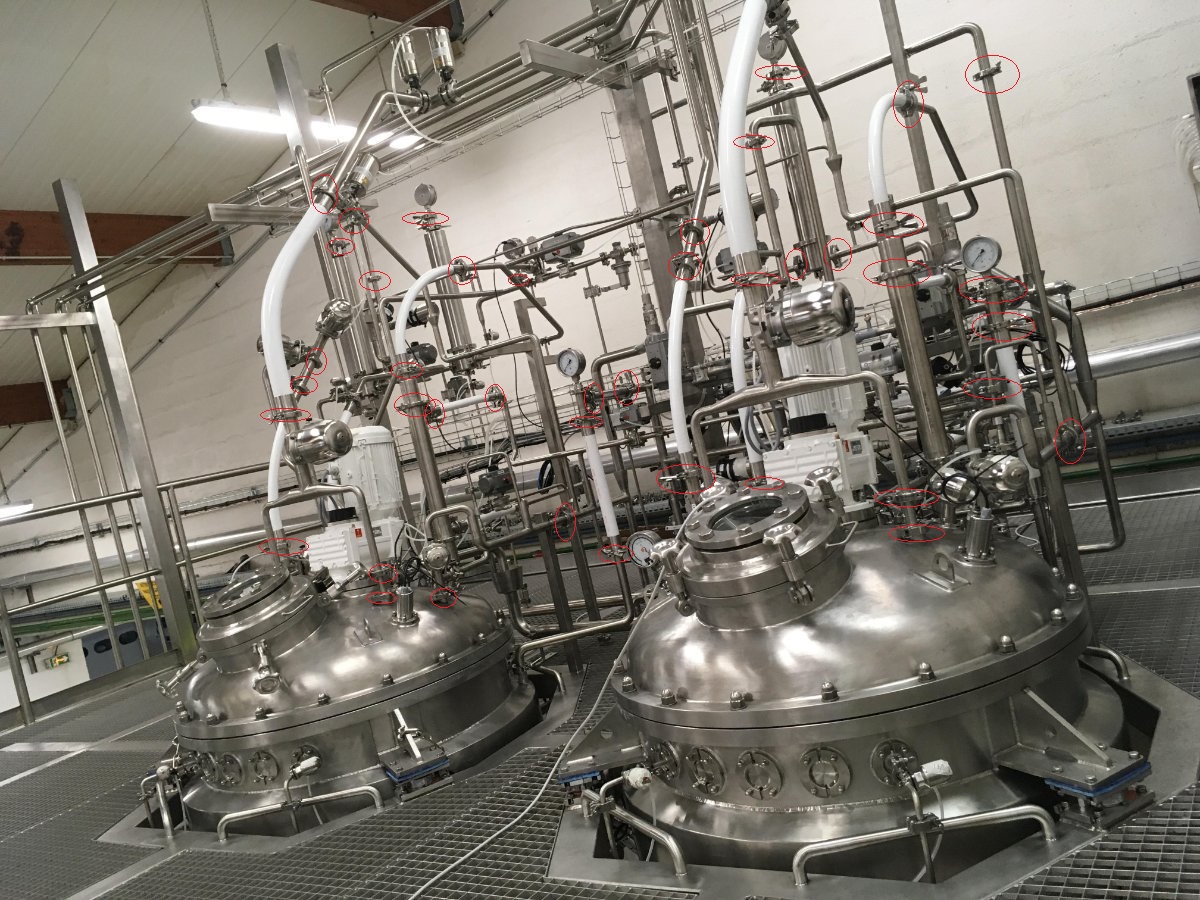

Tri-clamps are mostly used in the food, cosmetic and pharmaceutical industries, both in laboratories and at production sites. These applications need perfect cleaning, hygiene and sterilization. The potential for easy removal and cleaning of the gasket makes the tri-clamp the perfect solution for these particular applications.

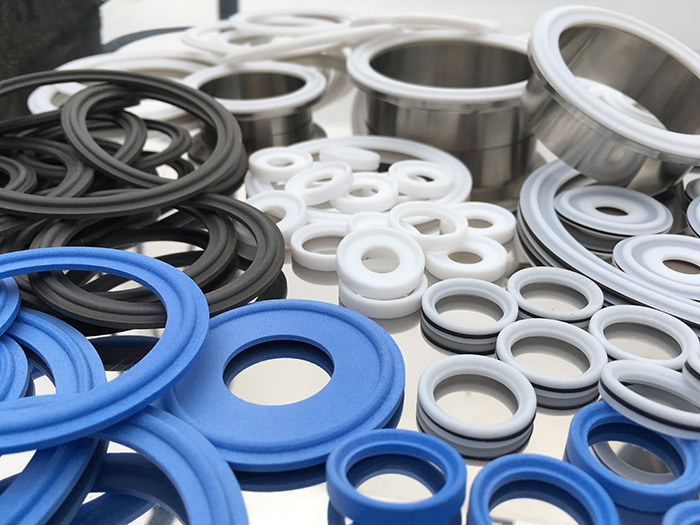

TRI-CLAMP gaskets   overview
Flon-Chem® Aseptic Line
Use of Tri-Clamp Gaskets
Materials

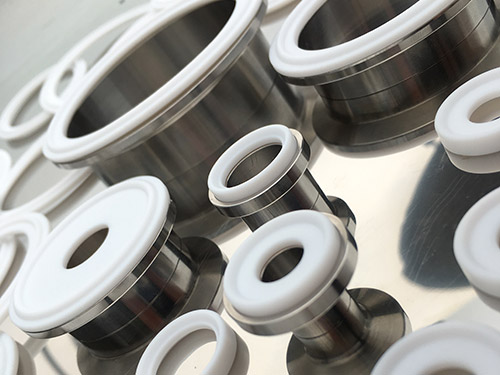

Flon-Chem® 1121
This is a virgin “premium grade” PTFE classified for medical use at up to 121°C according to USP class VI certification. Available also as an “envelope” option, with rubber inserts like EPDM, FLON-CHEM 1006 FKM and VMQ.

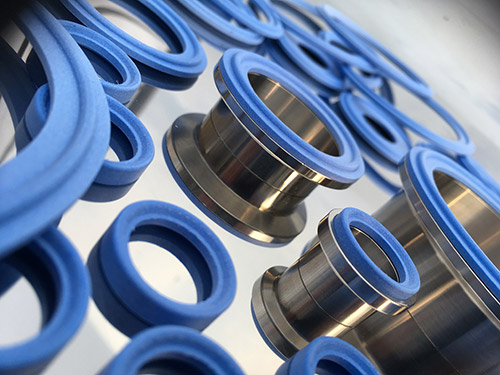

Flon-Chem® 1050 BLUE
This is a modified PTFE reinforced with hollow glass microspheres. Thanks to its high elasticity and elastic return it offers a high adaptability even with low torque couplings.

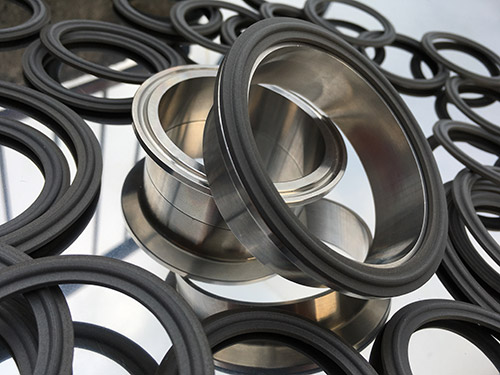

Flon-Chem® 1045 SILVER
This is a special mix made from 50% virgin PTFE and 50% spherical passivated inox 316. These particular gaskets have a higher stability and lifespan and are ideal for environments subject to a lot of sterilisation processes (S.I.P.). They are specifically designed for steam resistance and are metal detectable!!
Discover the Technical Data Sheet

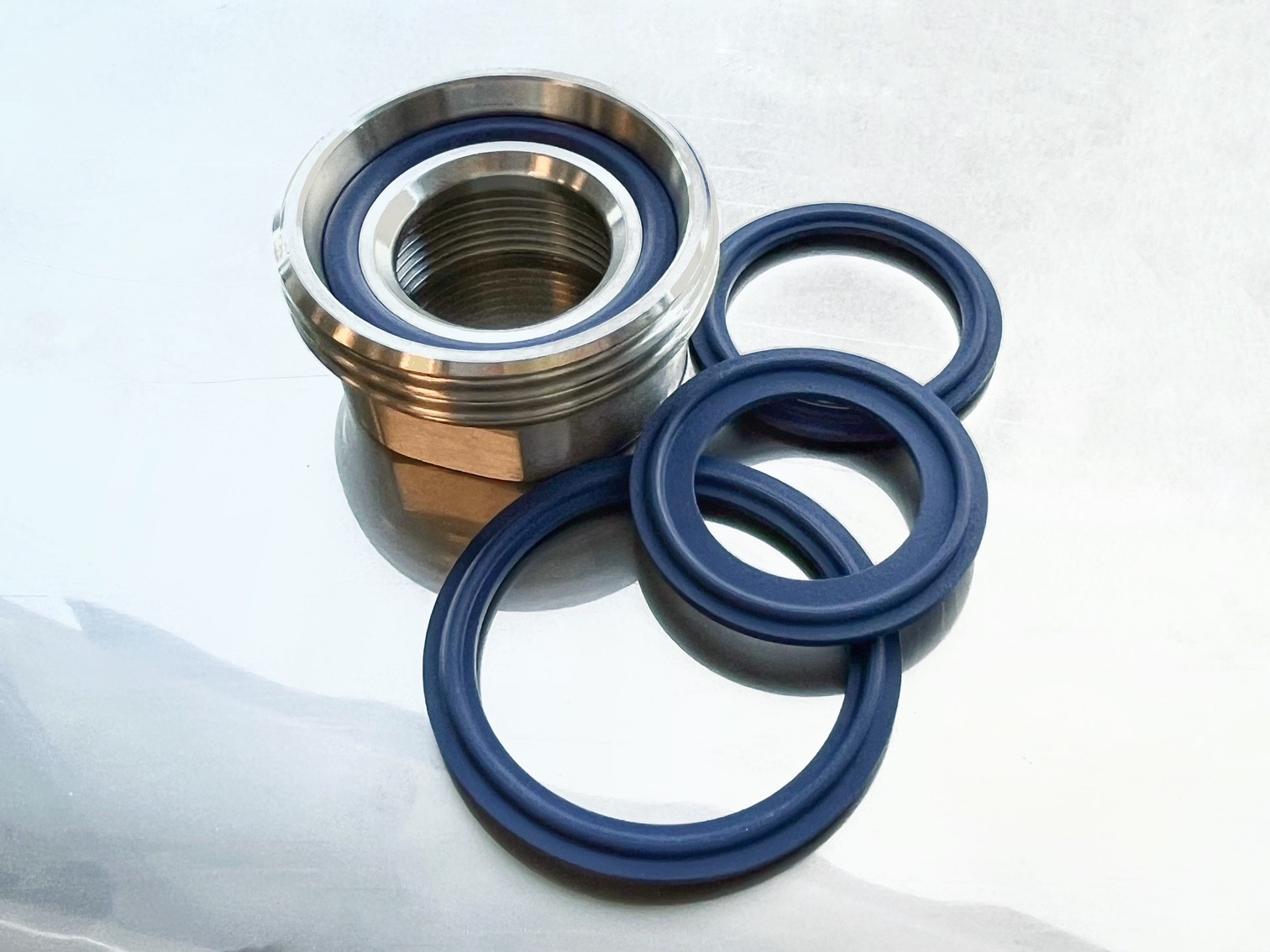

Flon-Chem® 1086 DETEK
Revolutionary virgin blue PTFE detectable by optical scanners, X-rays, and metal detectors. X-ray detectable!!

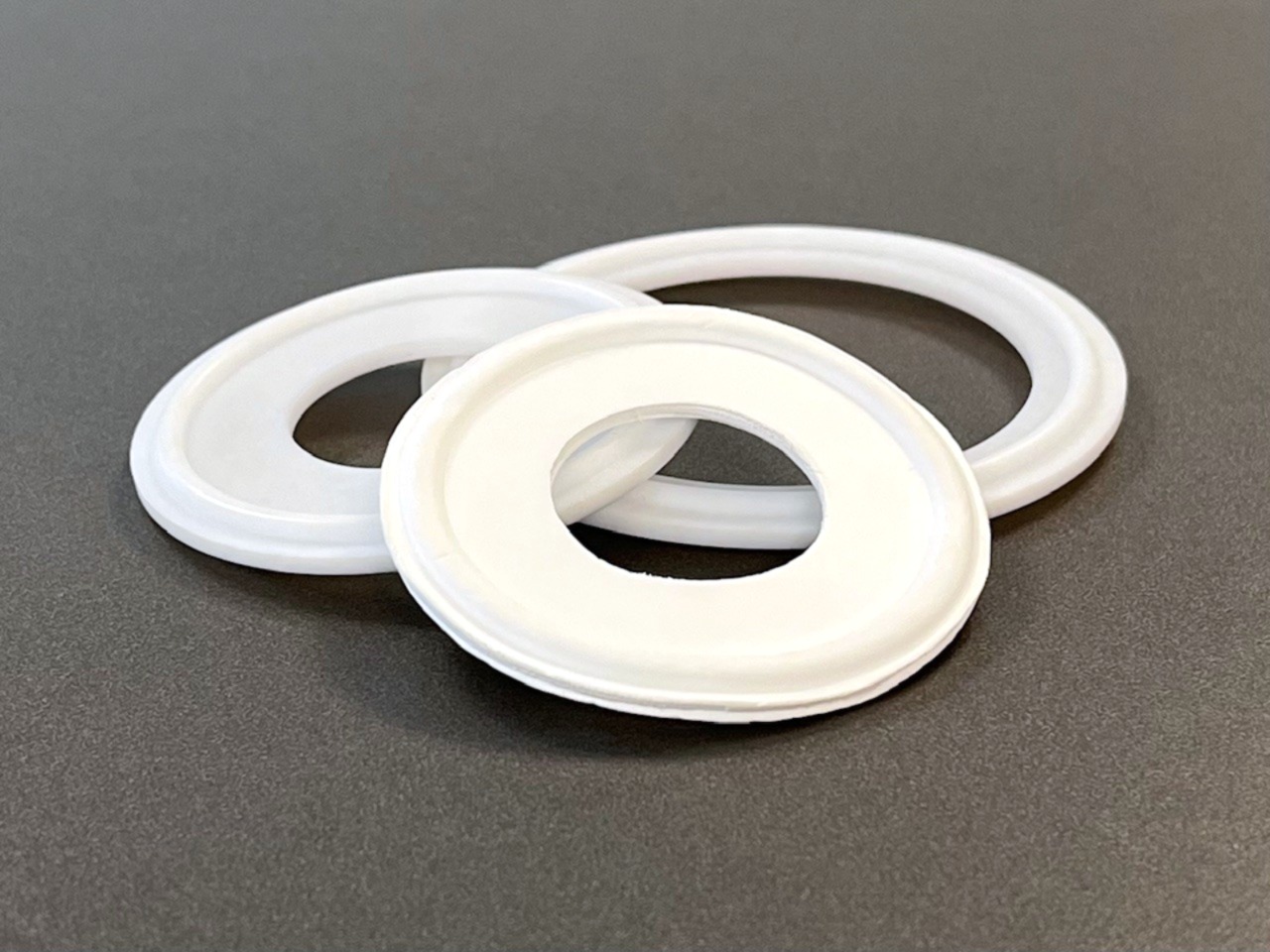

Multi-Soft
Multidirectional expanded PTFE
Certifications
All the materials listed above are compliant with the following certifications:
  • US legislation: FDA, Food and Drug Administration, department of Health and Human Services, Code of Federal Regulations 21 CFR Ch.1; USA regulations sections 177.1550 (a) (1) and (b) Perfluorocarbon Resins;
  • EU legislation: 1935/2004/CE 1895/2005/CE 10/2011/UE 2023/2006/UE (MOCA);
  • Italian legislation: D.M. 21/03/1973 DPR 777/82.

In addition to that our FLON-CHEM 1121 haS obtained the following certifications:

  • USP Class VI @ 121°C according to USP<87> and USP<88>;
  • 3-A Sanitary Standard for Multiple-Use Plastic Materials – No. 20-27.
Dimensional standards and type
Below are the dimensional standards and types of tri-clamp gaskets available:
DIN 11850
(DIN 11866 Series A)		 ISO 1127
(DIN 11866 Series B)		 ASME BPE – 2009
(BS 4825 / DIN 11866 Series C)
DNØD3ØD1 DNØD3ØD1 DNØD3ØD1
66,221,8 10,2on request ¼”4,821,8
MINI MINI MINI
88,221,8 13,510,521,8 3/8”821,8
MINI MINI MINI
1010,234 17,214,221,8 ½”9,621,8
MINI MINI MINI
1516,234 21,318,350,5 ¾”1621,8
MINI MINI MINI
2020,234 26,923,950,5 1”22,331,1
MINI MINI MINI
2526,250,5 33,729,950,5 1”22,350,5
3232,250,5 42,438,664 1 ½”3550,5
4038,250,5 48,344,564 2”47,764
5050,264 60,356,577,5 2 ½”60,477,5
6566,291 76,172,391 3”73,191
8081,2106 88,984,5106 4”97,6119
100100,2119 114,3109,9130 6”147,1167
125125,2155 139,7134,7155
150150,2183 168,3163,3183
200200,2233,5 219,1214,1233,5
ISO 2852 SMS 3019
DNØD3ØD1 DNØD3ØD1
1210,234 121034
12,710,934 1816,234
17,215,434 2522,850,5
21,319,534 33,731,550,5
2522,850,5 3835,850,5
33,731,550,5 5148,864
3835,850,5 63,560,577,5
4037,864 76,173,191
5148,864 88,985,1106
63,560,677,5 101,697,8119
706791 114,3110,5130
76,173,191 139,7135,9155
88,985,1106 168,3163,3183
101,697,8119 219,1214,1233,5
114,3110,5130
139,7135,9155
168,3163,3183
219,1214,1233,5

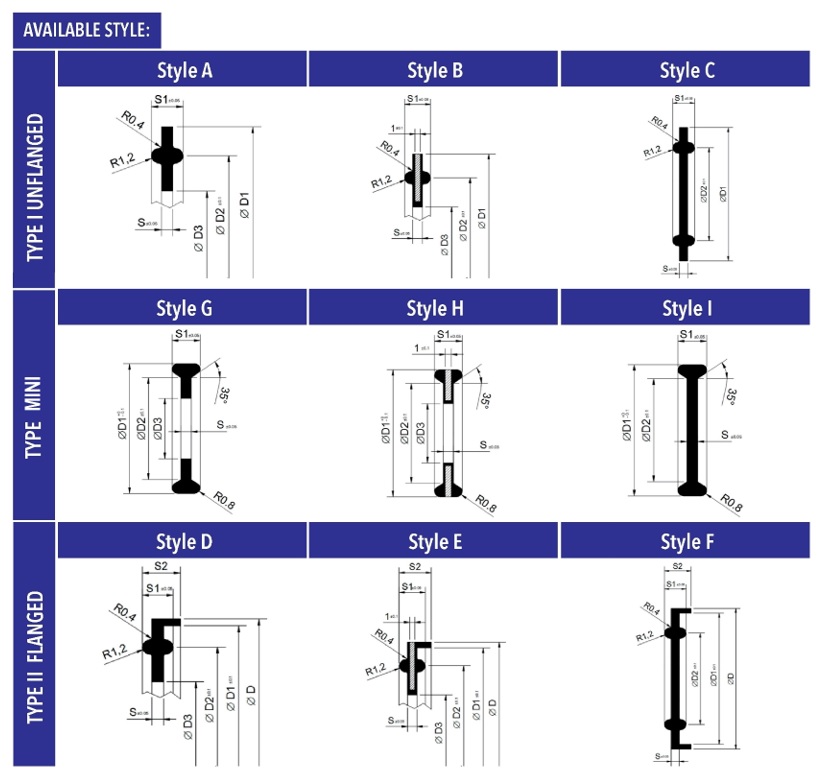

Types of Gaskets
Discover our Brochure
